High-quality tempered glass road stud meeting Malaysian road safety standards
Product Overview

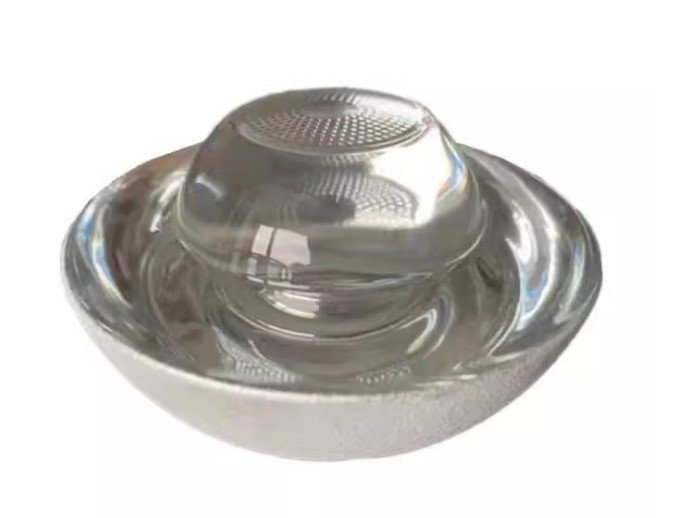

The Road Reflector Marker Malaysia from Blue Box Sdn Bhd is a 360° tempered glass road stud designed for maximum night visibility and enhanced traffic safety in Selangor and across Malaysia. Made from premium tempered glass, it withstands heavy vehicle loads, harsh weather, and long-term outdoor use.
Whether installed on highways, intersections, or commercial driveways, our Road Reflector Marker Malaysia clearly marks lanes, pedestrian crossings, and hazard zones, even in poor lighting conditions. It is fully compliant with Malaysian road safety standards and trusted by contractors and developers nationwide.
Discover more road safety solutions from Blue Box Sdn Bhd
Product Specifications-Model: BBIM-00079
| Material | Reflective Coverage | Dimensions (Diameter × Height) | Weight | Visibility Range | Load Capacity |
|---|---|---|---|---|---|
| Tempered Glass | 360° | 100mm × 50mm | 0.7 kg | 300+ meters | >5 tons |

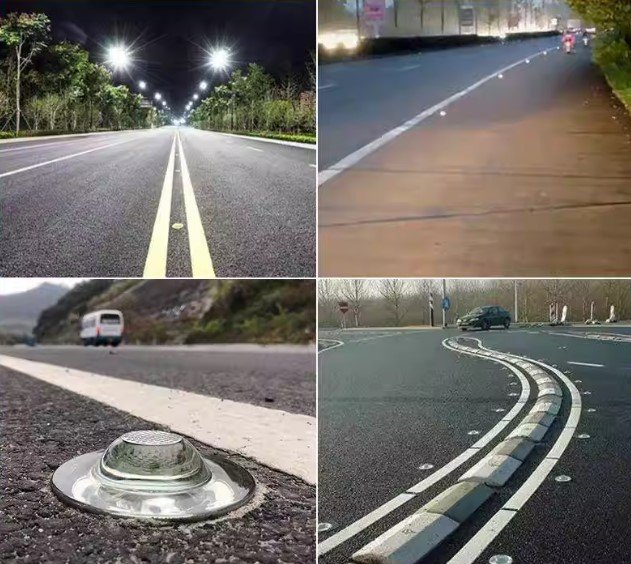

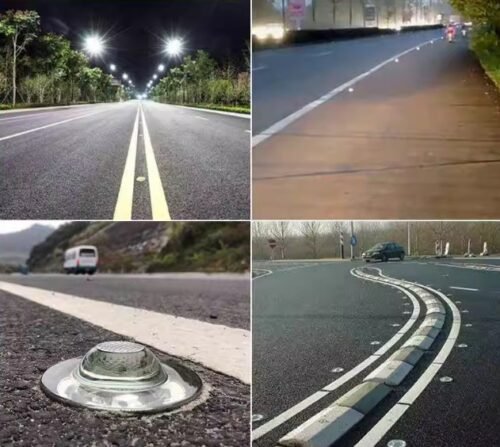

Applications in Construction & Commercial Projects
The Road Reflector Marker Malaysia is ideal for:
-
Highways & Toll Roads – Lane division and hazard marking.
-
Urban Roads – Intersections, crossings, and traffic control.
-
Industrial Areas – Heavy truck routes and loading zones.
-
Shopping Malls & Parking Facilities – Low-light traffic guidance.
-
Construction Sites – Temporary lane and perimeter marking.
Key Features and Benefits
-
High Night Visibility – Reflection visible from 300+ meters.
-
Fully Tempered Glass – Resistant to impact, heat, and UV rays.
-
360° Reflective Surface – Visibility from all angles.
-
Heavy-Duty Strength – Handles trucks and heavy machinery.
-
Low Maintenance – Long service life with minimal upkeep.
-
Standards Compliance – Meets Malaysian road safety requirements.
Frequently Asked Questions (FAQ)
Q1: What is the main function of a Road Reflector Marker Malaysia?
A: To improve road visibility and reduce accidents, especially at night.
Q2: Can it handle Malaysia’s weather?
A: Yes, it is resistant to rain, heat, and humidity.
Q3: How far can it be seen?
A: Up to 300 meters under proper lighting conditions.
Q4: Can it be used in parking lots?
A: Yes, it works perfectly for commercial and residential parking areas.
Q5: Is installation complex?
A: No, it is easily installed using road-grade epoxy or bitumen adhesive.
Q6: Does it handle heavy loads?
A: Yes, it withstands over 5 tons.
Q7: Is it approved for public road use?
A: Yes, it meets Malaysian safety standards.
Q8: Can it help reduce accidents?
A: Yes, by improving driver awareness in low visibility conditions.
Technical Documentation & Support
We provide:
-
Detailed installation guides (PDF)
-
Product datasheets
Installation Guide – 360° Glass Road Stud (Road Reflector Marker Malaysia)
Tools & Materials Required
-
Road Reflector Marker Malaysia (360° tempered glass type)
-
Road-grade epoxy adhesive or bitumen-based adhesive
-
Measuring tape & chalk line marker
-
Core drill or asphalt cutter (for recessed installation)
-
Hammer drill with masonry bit (if drilling required)
-
Safety gloves, goggles, and high-visibility vest
-
Road surface cleaning brush or air blower
Pre-Installation Checklist
-
Check Site Conditions
-
Ensure road surface is dry, clean, and free from dust, oil, or loose debris.
-
Installation should be done in dry weather, with no rain forecast within 24 hours.
-
-
Verify Placement Location
-
Follow project plans or Malaysian JKR/MIROS road safety guidelines for correct stud spacing.
-
Standard spacing for lane marking: every 6–12 meters, depending on road type.
-
-
Safety Precautions
-
Use proper PPE (Personal Protective Equipment).
-
Place warning signs and safety cones to redirect traffic.
-
Installation Steps (Surface Mount Method)
-
Mark the Position
-
Use a chalk line to mark the exact placement for each Road Reflector Marker Malaysia.
-
-
Clean the Surface
-
Remove dust, dirt, and grease using a brush or air blower.
-
Ensure the surface is dry before proceeding.
-
-
Apply Adhesive
-
Apply road-grade epoxy or bitumen adhesive to the base of the road stud.
-
Use enough adhesive to cover the entire contact surface.
-
-
Place the Road Stud
-
Position the Road Reflector Marker Malaysia firmly onto the marked spot.
-
Press down to ensure full adhesive contact.
-
-
Secure & Let Cure
-
Keep traffic off the stud for at least 4–6 hours for epoxy, or as per adhesive manufacturer’s instructions.
-
Installation Steps (Recessed Method – Optional for Heavy Traffic Areas)
-
Drill a Recess
-
Use a core drill or asphalt cutter to create a shallow recess matching the stud’s base diameter.
-
-
Clean the Cavity
-
Remove all loose particles and dust from the drilled area.
-
-
Apply Adhesive
-
Spread adhesive inside the recess and on the stud base.
-
-
Insert the Road Stud
-
Place the Road Reflector Marker Malaysia into the recess and press firmly.
-
-
Allow to Cure
-
Follow adhesive curing
-
Order Now
Get your Road Reflector Marker Malaysia today for fast delivery in Selangor and nationwide.
📞 Call: +603 8052 0108
📧 Email: yng@yuenexg.com
🌐 Visit: www.YUENexG.com
Why Choose Us
-
Over 10 years in road safety solutions
-
Certified quality products
-
Competitive prices for bulk orders
-
Nationwide delivery service
Company Info
Company Name: Blue Box Sdn Bhd
Website: www.YUENexG.com
Note
Product images are for reference only. Actual design, color tone, and dimensions may vary slightly due to manufacturing or lighting differences.
